Galvalume 90°
1.5" Mechanical Seamed
Product: 1.5" mECHANICAL sEAMED
Engineered for long-term, weather-tight protection with a mechanical lock seam.
The side legs of the panel require seamer closings, which is a tool available from Majors Metal.
No holes on the roofing panels
Residential and Commercial
Onsite roll forming available for longer panels
High Velocity Hurricane Zone (HVHZ) Approved
FEATURES
- Available in 12, 16'' or 20'' wide coverage
- 24 and 26 gauge
PANEL OPTIONS & PROFILES
Striations (Recommended)
Stress Ribs
Curved/Radius
Flat (Not Recommended)
Optional Clip Relief
* Factory applied Seam Sealant
INSTALATION
Minimum Slope
2 : 12
Deck Type
Wood — Non-insulated
COLORS AND FINISHES
Download the color chart here (PDF).
• 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
• Kynar 500® Paint System - the ultimate in exterior durability and color retention
• Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness
• “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
WARRANTY
- Salt Water Finish Warranties: (PDF)
- 30 – 35 years paint finish and ten or twenty years weathertightness
warranties are available.
• 40 year residential paint warranty
• 20 and 30 year commercial paint warranty.
Weathertight Warranties
20 Year NDL Weathertight Warranty (PDF)
Standard 20 Year Weathertight Warranty (PDF)
Finish Warranties
40-Year Limited PVDF (Kynar) Warranty – AZ50 Galvalume, G90 Galvanized, or Aluminum – SAMPLE (PDF)
35 Year Coastal PVDF (Kynar) Warranty – Aluminum Only – SAMPLE (PDF)
Material Warranty
Galvalume Substrate Warranty (PDF)
TESTING
PANEL PERFORMANCE:
- UL 580 Class 90 (Uplift),
- ASTM 1592 (Uplift) Aluminum, Galvalume
- Can be engineered to current ASCE 7 design standard
SUSTAINABILITY
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit.
• “Cool” color pigments are specially designed to reflect infra-red light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
BENEFITS
- Long-term, weather-tight protection.
- Rated system designed for superior wind and water resistance.
- Supports thermal movement with precision-fit concealed clips.
More Roofing Panel Systems
Our Premium Roofing Panels
Product Data
Panel Description

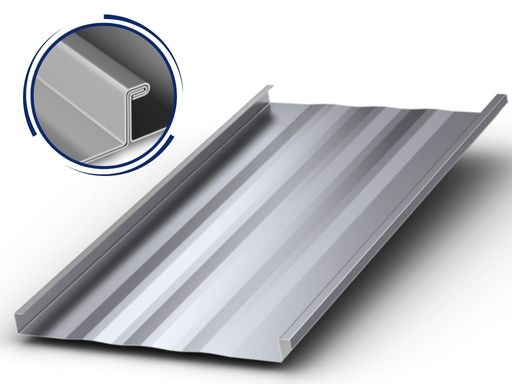

The Majors Metal 1.5” Mechanically Seamed profile is a concealed fastener panel. The panel can be formed in either a 12”, 16”, or 20” width. The Majors Metal 1.5” Mechanically Seamed profile represents the state of the art in standing seamed technology for roof integrity and positive weather tightness.
Panel Features and Installation
The side legs of the panel require seamer closings, which is a tool available from Majors Metal. Seaming completely encloses and conceals all clips and fasteners, ensuring the most watertight seal possible. Seaming should be done individually, after each panel is laid in place.
Seaming Options
The Major’s Metal 1.5” Mechanically Seamed, in addition to standard single-seaming, can be double-seamed if necessary, with an additional pass of the seamer.
Material and Application
The Major’s Metal 1.5” Mechanically Seamed utilizes 4” of material to form the legs. This is a 1.5” standing seam architectural panel used widely in commercial and residential applications. It is especially suitable where roof slopes are long and/or low.
Warranty
30 – 35 years paint finish and ten or twenty years weathertightness warranties are available.
Minimum Slope
2 : 12
Deck Type
Wood — Non-insulated
PDF Example
Available Colors
